Solvent Recycling and Recovery for Offset Printing
With Alltrade Recycling Equipment, your offset printing operations become greener.
- Used blanket wash transported off-site is reduced by up to 95% because the blanket wash is reclaimed on-site then reused to effectively clean blankets.
- You can improve your waste generator status with environmental agencies and help local government achieve waste reduction goals.
- You no longer have to complete a solvent waste manifest or schedule solvent waste pickups. In addition, you no longer have liability for off-site transportation of solvent waste.
Blanket wash is available on demand.
With a Solvent Recycler:
- unnecessary blanket wash purchases are eliminated
- blanket wash costs drop by up to 90%
- waste disposal costs drop by up to 95%
- profitability improves
The Solvent Recycler is an off-press, self-contained process, effectively recovers used blanket wash by removing and segregating the absorbed materials - water and ink debris. The clean, reclaimed blanket wash can be used over and over to clean blankets with virtually no loss of cleaning power. The segregated ink debris is placed in the waste ink container and recycled water is safely disposed of in accordance with local regulations.
Standard Features
- Certified to UL Safety Standard 2208 and CSA Standard 22.2, Nos. 30 and 88. For use in non hazardous locations and hazardous locations. Class 1, Division 1, Group D.
- Rugged stainless steel construction for long service life. Non-corrosive fluid passageways.
- Microprocessor controls work flow and monitors operating parameters. Many built-in safety programs. Operating parameters and self diagnostics are displayed on the LCD.
- Self-cooling via high efficiency condenser with motor driven fan.
- 1 year full parts and labour warranty, 2 year replacement warranty on pumps.
DOWNLOAD THE BROCHURE
Models
BC30G
Reclaims: 120L (30 gal) in 24 hrs.
Process: Continuous, as blanket wash vaporizes,
used solvent from the drum is pumped into the
distillation chamber.
Dimensions: 28”W x 17”D x 43”H
Weight: 185 lb

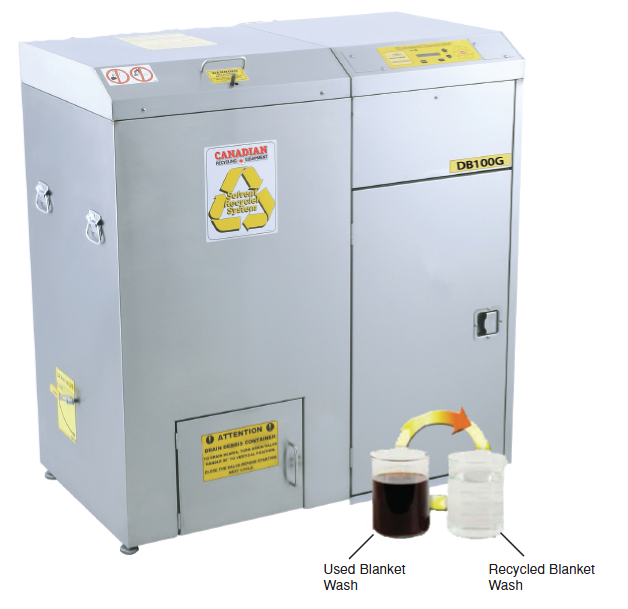

DB100G
Reclaims: 80L (20 gal) in 14 hrs.
Process: 20 gal batch
Compressor: not required after initial fill of
distillation tank.
Dimensions: 42”W x 23”D x 45”H
Weight: 450 lb
DC100G
Reclaims: 208 L (55 gal) in 24 hrs.
Process: Continuous, as blanket wash vaporizes,
used solvent from the drum is pumped into the
distillation chamber.
Compressor: remains on during operation.
Dimensions: 42”W x 23”D x 45”H
Weight: 450 lb
